Automatic Stretch Film Rewinding Machine
Automatic Stretch Film Rewinding Machine suit rewinding PE stretch film,PVC food cling film and PVC stretch film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Automatic Stretch Film Wrapping Machine for Rewinding
The Automatic Stretch Film Rewinding Machine performs both slitting and rewinding functions for different types of films, such as LLDPE stretch film and PVC cling wrap film.
The Automatic Stretch Film Rewinding Machine is an advanced automated system tailored for the swift rewinding of stretch film from large rolls into smaller ones. Its design and functionality are intuitive, making it suitable for high-capacity production without necessitating a highly specialized operator.

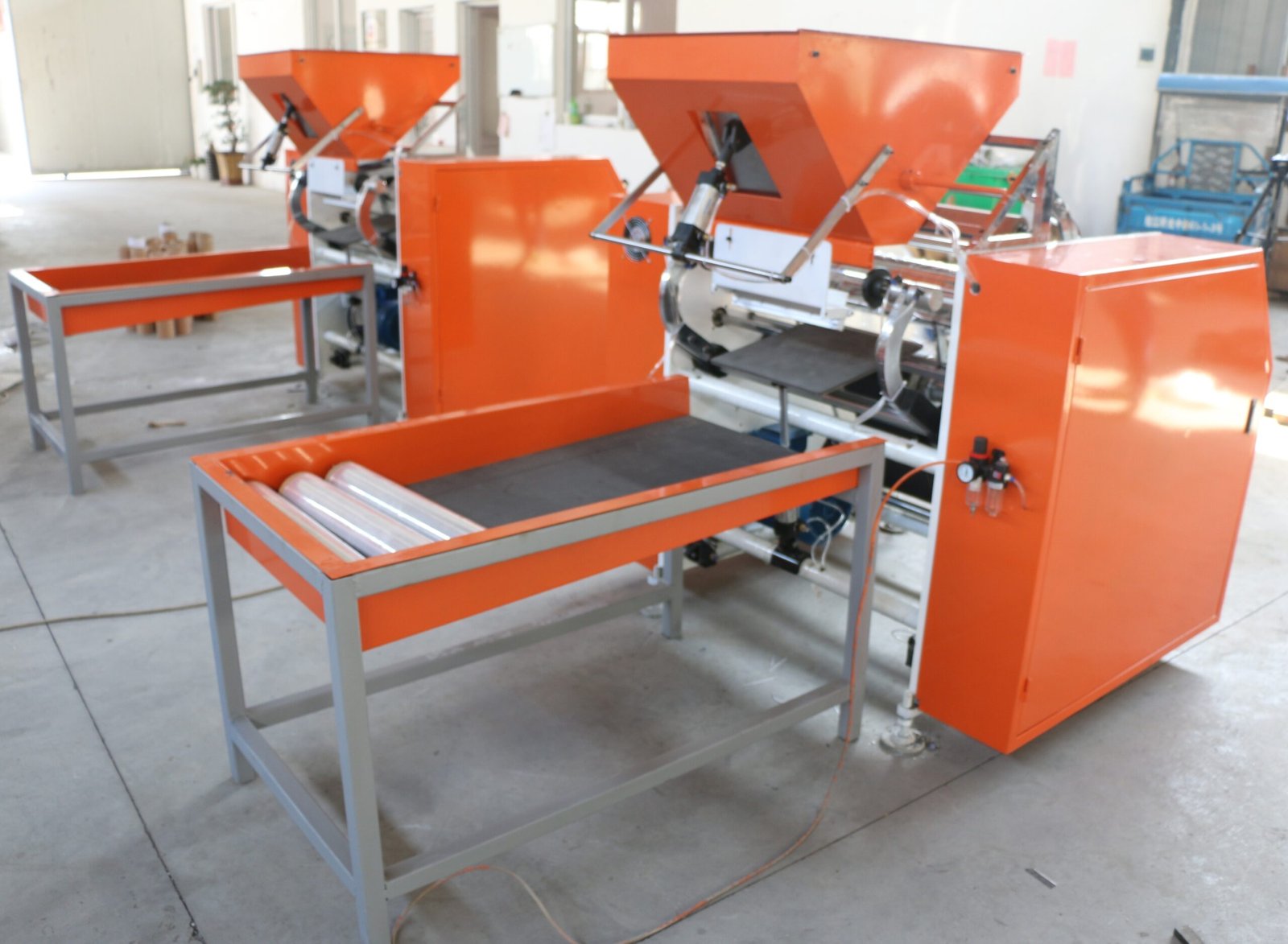

Stretch film rewinding machine
The Automatic Stretch Film Rewinding Machine presents the following characteristics:
The stretch film rewinding machine is engineered to enhance productivity in various applications.
– Capable of operating at speeds of up to 800 meters per minute
– Demonstrates high production efficiency with swift changeover capabilities
– Executes a fully automated cycle orchestrated by a Programmable Logic Controller (PLC)
– Accommodates paper cores in sizes of 1, 2, or 3 inches
– Rewinds without stretching to maintain proper tension
– Suitable for LLDPE stretch film, PVC stretch film, LLDPE cling wrap film, and PVC food wrap film
– Able to rewind film from large to small rolls
– Incorporates inverter control for adjustable rewinding speeds, enhancing power efficiency and reducing costs
– Supports film widths ranging from 100mm to 500mm
– Includes a meter counter
– Secured by a one-year warranty for uninterrupted 24/7 operation
– Features a user-friendly design for straightforward operation
– Tailored for cost-effectiveness to cater to newcomers or beginners in the industry

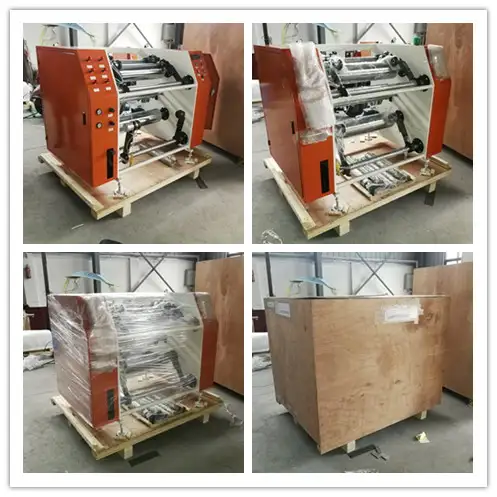

stretch film machine with wooden pack
Main Technical Parameters:
| Model | AKDRW-500 | AKDRW-600 | AKDRW-700 |
| Film width | 280-500mm | 280-600mm | 300-720mm |
| Rewinding width | 280-500mm | 280-600mm | 300-720mm |
| Max. diameter of Jumbo roll | 400mm | 400mm | 400mm |
| Max. diameter of Rewinded roll | 300mm | 300mm | 300mm |
| Rewinding speed | 900m/min | 900m/min | 900m/min |
| Winder exchanging | Automatic | ||
| Core size of unwinder | 3” | ||
| Core size of rewinder | 1-3” | ||
| Conveyor & stacker | Option device | ||
| Power Voltage | 220V,380V,440V | ||
| Machine Working time | 24 hours*7 | ||
| Material Core Diamater | 76mm(3 inch) | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
instalment service
install machines in Mexico customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Stretch film machine.
Extrusion Film Extrusion use Polyethelene.
Linear Low Density Polyethylene(LLDPE):
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
