Blown Film Extrusion With Gravure Printing Machine
Film Blowing machine with Gravure Printing machine in line,film blowing machine produce film,film can be printed directly by printing machine,to labor saving.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Blown Film Extrusion With Gravure Printing Machine

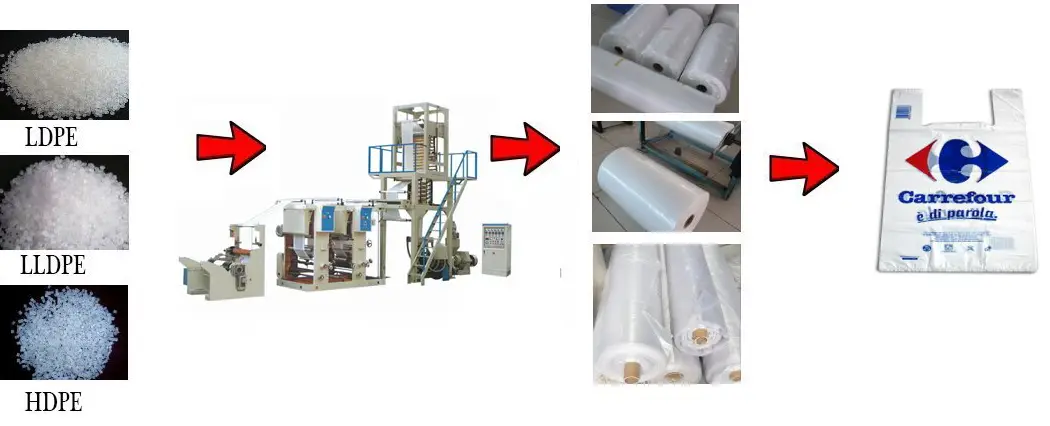

The combination of blown film extrusion with a gravure printing machine enhances the efficiency of film production and printing, leading to cost savings and labor optimization. The cost-effective design of the polyethylene film blowing machine is particularly beneficial for new entrepreneurs entering the film production industry. This film extrusion technique guarantees the production of top-notch film suitable for a wide range of packaging needs, such as flat bags, T-shirt bags, supermarket bags, shopping bags, sachet water bags, packaging film, and more.
By merging the film extruder with a two-color gravure printing machine, printing speeds harmonize seamlessly with film production speeds. The ability to customize printing colors allows for meeting specific buyer demands.
blown film extrusion
| Model | SJ50- ASY2600 | SJ55- ASY2800 | SJ60- ASY21000 |
| Blowing Flim Width | 600mm | 800mm | 1000mm |
| Printing Width | 600mm | 800mm | 1000mm |
| Printing Length | 191-1200mm | 191-1200mm | 191-1200mm |
| Printing Color | 2 colors | ||
| Mterials | LDPE,HDPE,LLDPE,recycle material | ||
| Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
| Usage | Plastic Shopping Bag,T-shirt bag,trash bag,packing film,table cover,shrink film | ||
| Screw Dia. | 50mm | 55m | 60mm |
| Screw L/D Ratio | 28:1 | 28:1 | 28:1 |
| Blow Film Motor Power | 11Kw | 15Kw | 18.5Kw |
| Max. Capacity | 35kg/h | 50Kg/h | 65Kg/h |
| Film I lead DIA | φ60、φ 100 | φ80、φ150 | φ100、φ200 |
| Blow film thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Total Power | 28Kw | 32Kw | 40kw |
| Weight | 3.5T | 4T | 5T |
| Dimensions (m) | 6×2.4×4 | 6.2×2.6×4.3 | 6.4x 2.8x 4.8 |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Material Core Diameter | 76mm | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
