Product Details
Double Layers Stretch Film Machine
The machine known as the Double Layers Stretch Film Machine is sized at 1000mm and is equipped with two extruders, two motors, two inverters, and a user-friendly design for simple operation. It operates quietly, with stable performance and is controlled via a PLC touch screen specifically for the winding process. This equipment consists of distinct sections including extrusion, traction, leveling, edge trimming, winding, and automatic roll replacement. Referred to as the Cast stretch film machine, it employs LDPE and LLDPE materials to create stretch film widely utilized for securing items like airport luggage, pallets, cartons, building materials, auto parts, and hardware. Our meticulously engineered stretch film wrapping machine is designed to meet a range of packaging requirements effectively.
The Double Layers Stretch Film Machine presents a range of attributes:
– Uses various materials like LLDPE, LDPE virgin, recycled, masterbatch, and additives
– Contains an inverter for governing the extruder speed, leading to power and cost savings
– Manufactures films with widths from 100mm to 500mm and thicknesses between 0.017mm and 0.04mm
– Ideal for applications such as stretch film, pallet packing, carton packing, building material packing, auto parts packing, hardware packing, and luggage wrap packing
– Made with 38CrMoAl screw material to enhance durability
– Backed by a one-year warranty, enabling non-stop 24/7 operation
– Designed for user-friendly operation and economic feasibility, particularly suited for novices
– Operates on power supplies of 220V, 380V, 440V, or 480V (adjustable based on location)
– Provides post-sale support like on-site installation and engineer-led training
– Accepts requests for tailored machines or OEM designs from clients.
Optional Equipment:
1)Auto load
2)Auto dry hopper
3)Motorize net changer
4)Hydraulic net changer
5)gule pump
6.air compressor
7.Chiller
8.Waste film crush online
Main Technical Parameter
Main Technical Parameter
| Item/Model | 500mm Double layers | 1000mm Double layers |
| Raw Material | LLDPE,LDPE | LLDPE,LDPE |
| Screw diameter(mm) | 65 | 65 |
| L/D ratio of screw (L/D) | 30:1 | 30:1 |
| T-die Mould Width (mm) | 750mm | 1250mm |
| Film Width(mm) | 500mm | 1000mm(500*2rollers) |
| Film Thickness(mm) | 0.017-0.05 | 0.017-0.05 |
| Film Color | Transparent,Black,Red,White,blue…film color changed by mastbatch | |
| Film Layer | Two layers A/B | Two layers A/B |
| Max output (kg/h) | 40 | 80 |
| Linear speed of machinery (m/min) | 50-100 | 50-100 |
| Total power (KW) | 45 | 80 |
| Overall dimensions (L*W*H) | 10*4*3m | 10*4*3m |
| Weight (T) | 8 | 8 |
| Air Comsumption | 3 m3/min | 3 m3/min |
| Water Consumption | 0.5 m3/h | 0.5 m3/h |
| Air Shaft Diameter | 76mm | 76mm |
| Machine Working time | 24 hours*7 | 24 hours*7 |
| Delivery Time | 30~45 days | 30~45 days |
| Warranty | 1 year | 1 year |
| Power | Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

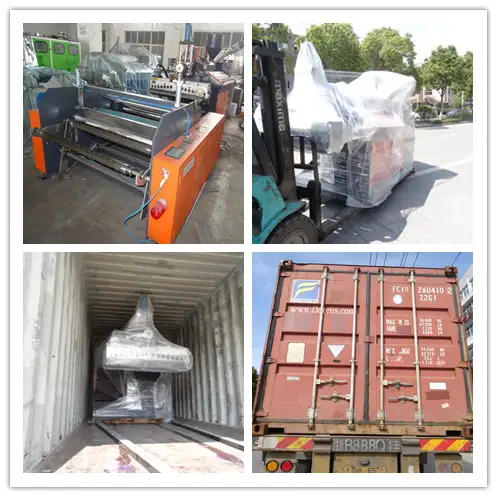

Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

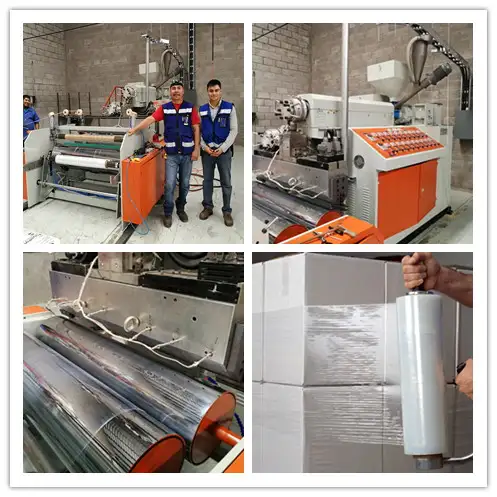

instalment service
install machines in Mexico customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.

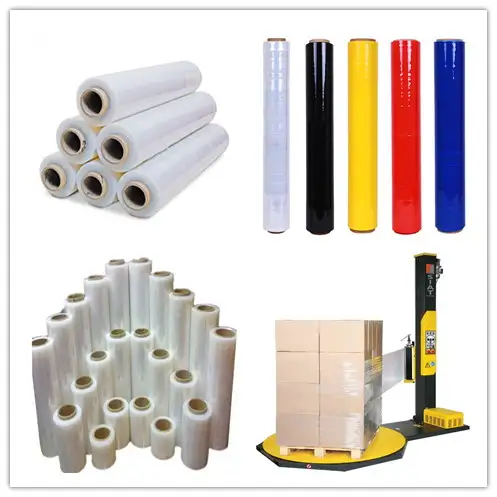

Material supplier
How To Find Polyethelene For Stretch film machine.
Extrusion Film Extrusion use Polyethelene.
Linear Low Density Polyethylene(LLDPE):
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
