Product Details

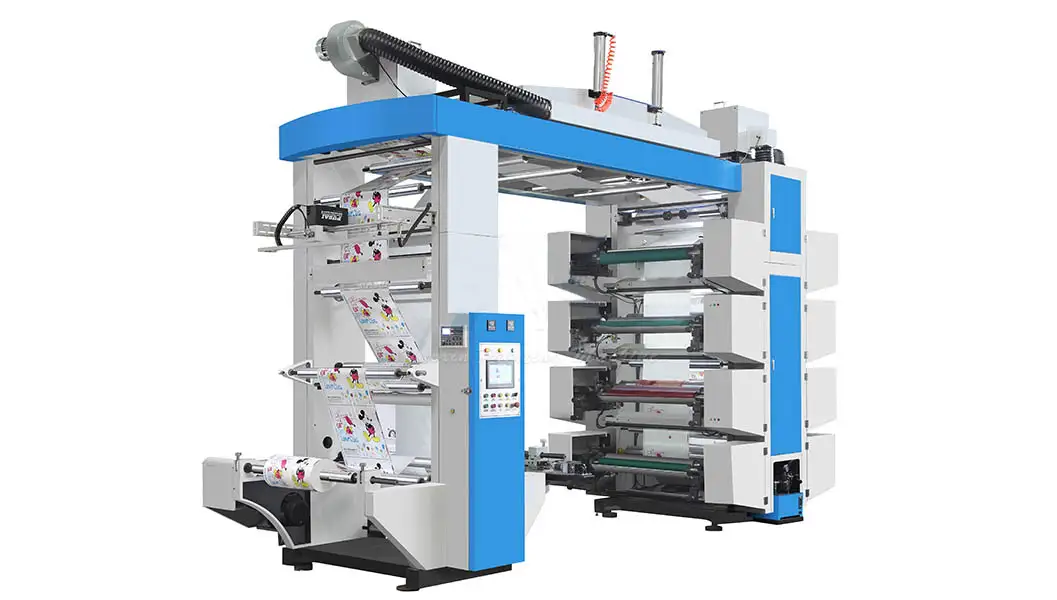

High Speed Eight Colors Flexo Printing Machine
The High Speed Eight Colors Flexo Printing Machine is equipped with sensitization resin for its adaptable printing plate, tailored for printing a variety of packaging materials such as polyethylene, polypropylene bags, cellophane, and roll paper. This machine is particularly suitable for producing paper packaging bags for merchandise, supermarket totes, vest bags, garment bags, and more.
Performance-wise, the High Speed Eight Colors Flexo Printing Machine stands out for its user-friendly operation, flexible startup, and precise color alignment. It boasts a meter counter for exact control over printing quantities, automatically halting the machine upon reaching the set quantity or material depletion. The pneumatic printing cylinder promotes ink mixing after lifting, while the anilox cylinder guarantees uniform ink dispersion.
| YT-A8600 | YT-A8800 | YT-A81000 | YT-A81200 | |
| Max.material width | 600mm | 800mm | 1000mm | 1200mm |
| Max.printing width | 560mm | 760mm | 960mm | 1160mm |
| Printing colors | 8 colors (8+0,7+1,6+2,5+3,4+4) | |||
| Printing length | 300-1000mm | |||
| Machine speed | 150m/min | |||
| Printing speed | 100m/min (120m/min with optional:chamber doctor blade) | |||
| Suitable Material | PAPER∶15~300g/m²、 NONWOVEN∶15-120G、PC∶10-120μm、OPP∶10-100μm、BOPP∶10-100μm、PE∶15-150μm、NY∶10-120μm、 PET∶10-100μm、CPP∶10-100μm | |||
| Adjusting of register | Electric motor control （vertical and horizontal） | |||
| Material of Plate | Resin | |||
| Constitution of Printing |
Ceramic Anilox roller 8pcs、single doctor blade 8pcs、printing Cylinder for printing length 400mm、 Camera & PLC touch screen control
|
|||
| Optional device :chamber doctor blade; | ||||
| Working Principle | synchronous belt driving | |||
| Printing precision | +/-0.15mm | |||
| Thickness of Plate (including the glue) | 1.7mm (please note us for different thickness) | |||
| Machine Voltage | 380V 50/60HZ 3PH | |||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
