Four Side Plastic Bag Making Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Four Side Plastic Bag Making Machine

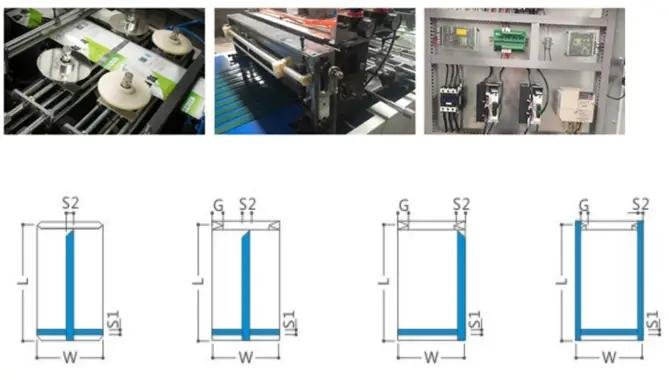

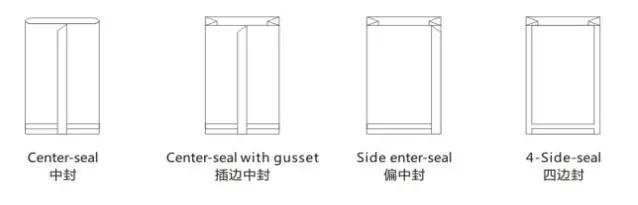

The Four Side Plastic Bag Making Machine is capable of manufacturing Middle Sealing bags, Four side bags, and Edge Sealing Bags. It operates under the control of a centralized PLC system with a user-friendly interface, ensuring stable performance, easy operation, and maintenance. The machine features an auto-tension control for unwinding, an EPC edge position controller, AC inverter for constant speed material feeding, and an imported double servo-motor material dragging control system. Additionally, it includes a main motor for up-down sealing and pressing, PID for sealing bar temperature adjustment, a pneumatic multi-function auto punching device, trim cutting, auto rewinding, and a static eliminator. The temperature adjustment range is 0~300°C, with various counter settings available, and the operation can be controlled by length fixation or photocell tracking.
Main Technical Variables:
| KDZD-C400 | |
| Max.Diameter of roll material | 600mm |
| Max.Width of roll material | 850mm |
| Max.Capacity | 160 section/min（pieces/mm） |
| Max.Mechanical speed | 45meter/min |
| Max.Bag-making Width | 400mm |
| Bag-making Length | 50-2400mm |
| Total Power | 25Kw |
| Weight | 4500kg |
| Outline Dimension | 10500x1700x1900mm |
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
