Heat Cutting Plastic Bag Making Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Heat Cutting Plastic Bag Making Machine

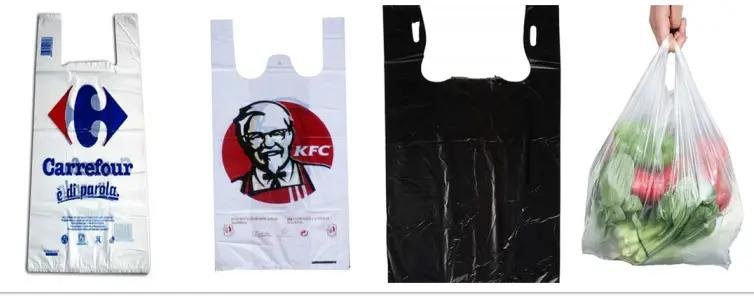

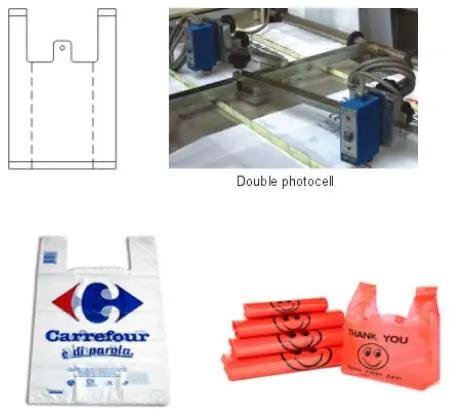

The Heat Cutting Plastic Bag Making Machine is designed for the production of printed vest bags. It features a main motor powered by a frequency conversion motor for energy efficiency and adjustable speed control. Equipped with a color code tracker for precise sealing and cutting length, the machine ensures minimal errors. Additionally, it utilizes an advanced computer system for accurate and flexible length adjustments. Included spare parts are: 2 sets of servo motors from Panasonic Japan, 1 set of PLC from Panasonic Japan, 2 sets of Hydraulic punchers, and an Automatic EPC system.
Main Technical Variables:
| Model | DFR 350×2 | DFR 450×2 |
| Max bag width | 30-300mm | 30-400mm |
| Max bag Length | 10-999mm | 10-999mm |
| Machine speed | 150×2pc/min | 150×2pc/min |
| Bag Thickness | 0.008-0.1mm | 0.008-0.1mm |
| Bag Material | LDPE,HDPE,LLDPE,recycle film | |
| Bag Color | Transparent,Black,Red,White,blue…bag color changed by Color masterbatch | |
| Motor Power | 2kw | 2kw |
| Electric Power | 3kw | 4kw |
| Weight | 1000kg | 1200kg |
| Machine dimension(L×W×H) | 3000×1400×1600mm | 3000×1500×1600mm |
| Power Voltage | 220V 1 Phase,50 Hz | |
| Machine Working Time | 24 hours * 7 days | |
| Warranty | 1 year | |
| Technical Assistance | Engineers available to service machinery overseas | |
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
