Three side Sealing Zipper Standing Bag Making Machine

Three side Sealing Zipper Standing Bag Making Machine

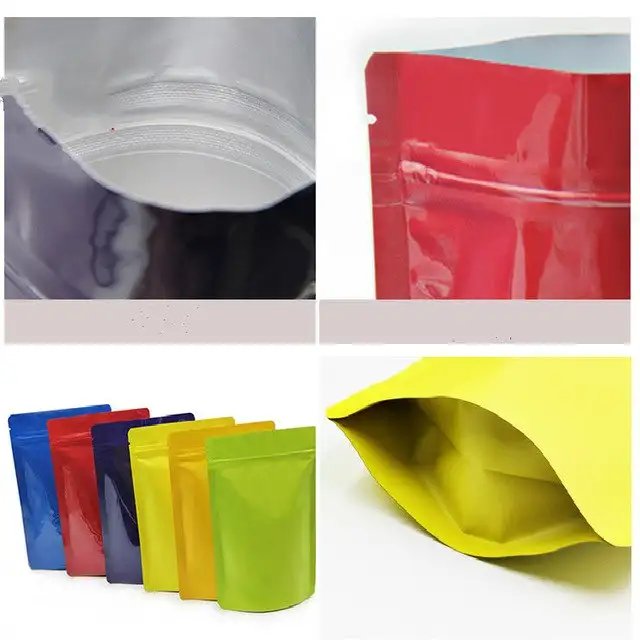

The Three side Sealing Zipper Standing Bag Making Machine (with Three servo motor) is designed to manufacture three-side sealing laminated film pouches with zipper sealing and self-standing bottom feature. It supports materials like BOPP, PET, CPP, PE, nylon, aluminum foil, and paper. This machine is user-friendly, produces smooth and attractive pouches, offers high-strength thermal edge sealing, and operates at a high speed, making it an excellent choice for packaging applications.

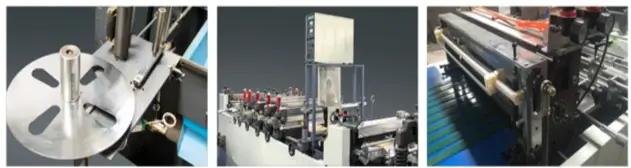

The Three side Sealing Zipper Standing Bag Making Machine is operated by a central PLC control system with a user-friendly interface, ensuring stable performance and facilitating operation and maintenance. The interface language can be switched between Chinese and English effortlessly. It features constant auto-tension control for unwinding, EPC edge position controller, and AC inverter constant speed material feeding. The machine also includes an imported double servo-motor material dragging control system and an inverter-equipped main motor for up-down sealing and pressing. Temperature adjustment for the sealing bar is done via PID with centralized settings on the user interface. Additionally, it is equipped with a Pneumatic multi-function auto punching device, trim cutting, auto rewinding, and a static eliminator. The temperature adjustment range is 0 to 300 degrees Celsius. The machine offers various counting options such as quantity, batch accumulation, and preset settings. It can be operated by length fixation control and/or photocell tracking control. The punching device allows for presetting working rhythms as continuous, interval, or stop, with adjustable punching times.

Main Technical Variables:

	KDZD-E600
Max.Diameter of roll material	600mm
Max.Width of roll material	1250mm
Max.Capacity	160 section/min（pieces/mm）
Max.Mechanical speed	35meter/min
Max.Bag-making Width	600mm
Bag-making Length	50-2400mm
Total Power	65Kw
Weight	7500kg
Outline Dimension	12500x2500x1900mm

If you only buy one machine,we will pack machine with wooden pack,and loading container withLess Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
