Slitting Machine with side arm crosswise unload roll
Slitting Machine with side arm crosswise unload roll, suit to slit BOPP film,LDPE film,HDPE film,PP film,PET film,PVC film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details

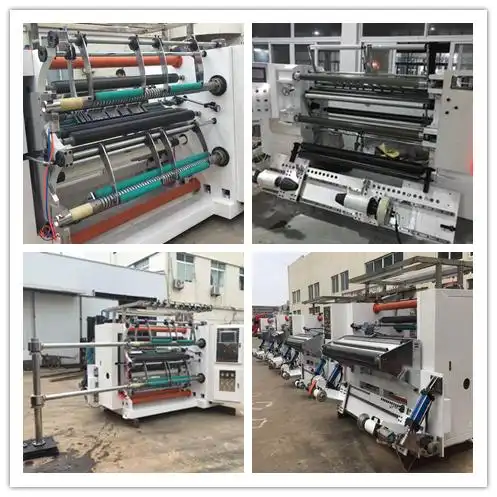

Slitting Machine with side arm crosswise unload roll
Ideal for cutting and rewinding various roll materials such as BOPP, PET, CPP, CPE, PVC, aluminum foil, and paper, the slitting machine comes with a side arm for crosswise roll unloading. It is capable of trimming edges, separating, and cutting materials according to specific production requirements. This plastic film slitting machine is equipped with edge position control and an automatic tension controller to boost operational efficiency.
BOPP film paper
This slitting machine is equipped with a side arm for transverse roll unloading and is compatible with LDPE, HDPE, LLDPE, BOPP, PP, PET, and paper films. It features inverter-controlled slitting speed for improved energy efficiency and cost-effectiveness. The machine supports films ranging from 100mm to 1300mm in width, incorporating edge position control and automatic tension adjustment. A one-year warranty ensures continuous 24/7 operation. The user-friendly design makes it suitable for novices, operating on 220V, 380V, 440V, or 480V power systems, with customization options available for various regions. Post-sales services include on-site installation and training by skilled engineers. Customers can request personalized or OEM-designed machines.
Main Technical Variables:
|
Type |
KD-F1300LS |
|
Material |
PET, BOPP, PE, printing composite |
|
Max. Slitting Speed |
10-450m/min |
|
Max.Width of Mother |
1300mm |
|
Width of Final Roll |
30-1300mm |
|
Material thickness |
0.012-0.1mm |
|
Max. Dia. of Mother Roll |
Φ700mm |
|
Max. Dia. Of rewinding roll |
Φ500mm |
|
Flatness rate |
≤0.2mm |
|
Host control |
PLC (Siemens brand) |
|
Touch screen controller |
10” |
|
Slitting knife |
Flat blade 6pcs/Round blade 6pcs |
|
Motor |
3PCS Servo motor 4KW |
|
winding shafts |
3” Slipping shaft 2pcs |
|
Scrap edge blower |
Included |
|
Unwinding shaft |
3” air shaft |
|
Powder brake of unwinding |
10kgs |
|
Slitting accuracy |
±0.5mm |
|
EPC accuracy |
±0.5mm |
|
Total power |
13kw |
|
Low voltage electrical appliances |
Schneider brand |
|
Pneumatic components |
AirTAC brand |
|
Bearing |
NSK brand |
|
Voltage |
380V 50HZ 3PH |
|
Weight of Machine |
3300kg |
|
|
|
|
1.Unwinding section |
|
Adopting a special conical top form, it does not damage the inner wall of the tube core and is fixed. 2. The unwinding is with automatic constant tension control mode. 3. The unwinding diameter is automatically detected by the proximity switch at the unwinding drive shaft, no need to input material thickness. The residual unwinding diameter can be set to automatically slow down and stop, making it easier to receive the next roll of material. 4. It has a mechanism for manually adjusting theedge offilm,adjustment range of±20mm. 5. The CCD camera automatic correction system, automatically corrects the thin film by following the edges and lines. |
|
|
2.Winding section |
|
3 . Up&Down Slipping shaft control by servo motor, and the winding tension is based on the current coil diameter,
5. The PLC automatically controls the speed reduction of the winding servo motor, ensuring that the temperature of the slip shaft does not exceed 50 ° C, greatly extending the service life of the slip shaft. 6. The slip pressure and winding motor torque are automatically adjusted simultaneously. |
|
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
If you only buy one machine,we will pack machine with wooden pack,and loading container withLess Than Container Load（LCL）. If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load). Our Main parts cooperator as following brand,but standard parts all made from China. How To Find Polyethelene For Blown Film Extrusion. Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).

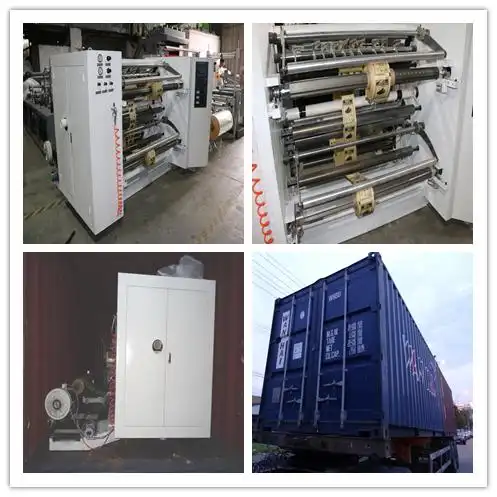

Shipment
shipment of plastic bag machine
instalment service
install machines in customer factory
Machine parts supplier
Material supplier
Extrusion Film Extrusion use Polyethelene,such as
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
