Three Layers Air Bubble Film Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Three Layers Air Bubble Film Machine
The Three Layers Air Bubble Film Machine, also referred to as the air bubble wrap film extrusion equipment, is specifically engineered for manufacturing air bubble film using Low Density Polyethylene (LDPE) or recycled LDPE as the primary material. This machine is available in widths of 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm, producing a bubble film with 2 layers. Operating with power options of 220V, 380V, 440V, or 480V, this equipment provides bubble film colors like red, blue, and yellow. Noteworthy is the simple design of the Three Layers Air Bubble Film Machine.
Three Layers Air Bubble Film Machine
Technical Variables:
| Model | KDPEG-1000 | KDFPG-1200 | KDPEG-1500 |
| Raw Material | LDPE,recycle material,masterbatch and additives material | ||
| Screw Diameter | φ65mm+φ50mm | φ75mm+φ60mm | φ90mm+φ70mm |
| Bubble film Max. width | 600mm | 1200mm | 1500mm |
| Bubble Film Layer | 3 layers,4 layers,5 layers | ||
| Bubble Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
| Output | 55kg/h | 70kg/h | 90kg/h |
| Total power | 75kw | 82kw | 98kw |
| L/D Ratio Of Screw | 28：1 | 28：1 | 28：1 |
| Water Consumption | 0.5m3/h | 0.5m3/h | 0.5m3/h |
| Machine Weight | 3.5 | 4.5 | 5 |
| Power Voltage | 220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Air Shaft Diameter | without paper core ,58mm,76mm | ||
| Machine Working Time | 24 hours*7 | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
two layers air bubble film machines

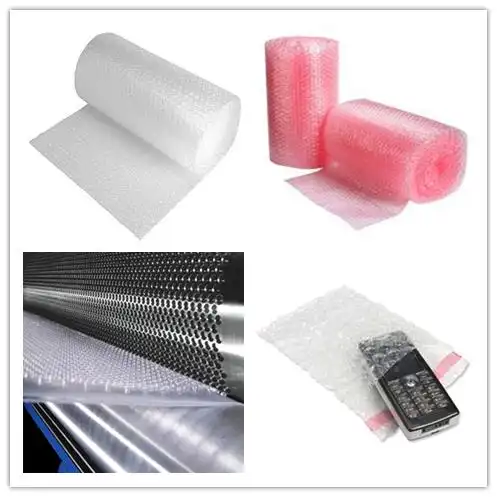

air bubble wrap film bubble bag
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

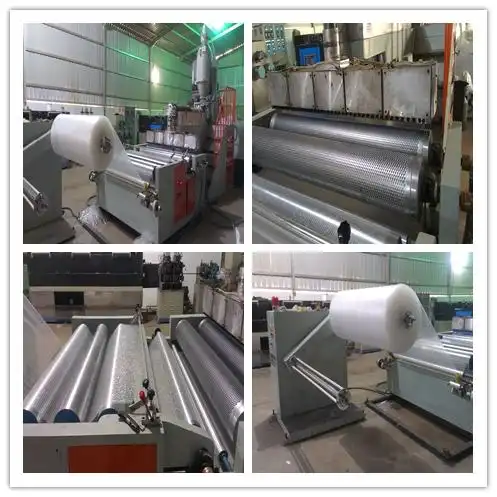

Bubble Film Machine Working in Customer Factory
two layers air bubble film machines

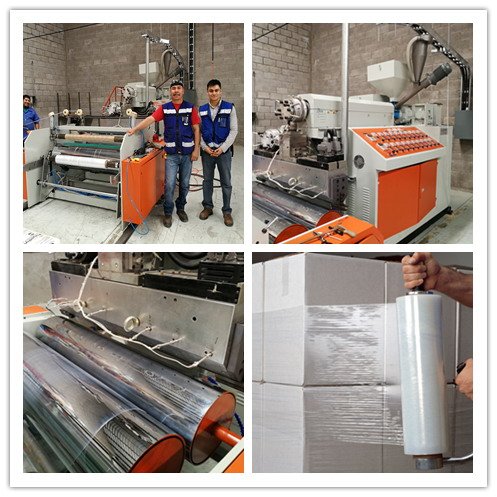

Install Strech Film Machine in Customer Factory
install machines in customers factory
