Three Side Sealing Bag Making Machine

Three side Sealing Bag Making Machine

The Three side Sealing Bag Making Machine boasts a rational structure, effortless operation, and high automation. It is apt for manufacturing three side sealing pouches using diverse plastic-plastic, paper-plastic, and paper-paper laminated materials.

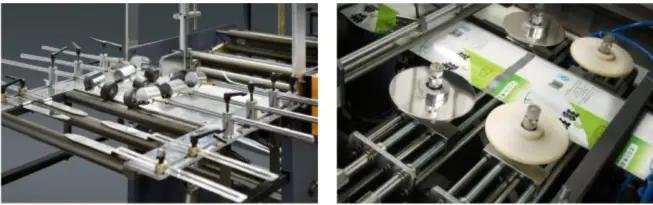

The Three side Sealing Bag Making Machine is fully governed by a central PLC control system with a user-friendly interface. This setup ensures enhanced stability, simplifies operational tasks, and facilitates maintenance procedures. Users can easily switch between Chinese and English display languages. Noteworthy features include constant auto-tension control for unwinding, EPC edge position control, and AC inverter with constant speed material feeding. Additionally, it boasts an advanced double servo-motor material dragging system, an inverter-equipped main motor for sealing and pressing, and a PID-controlled sealing bar temperature adjustment system. The machine is further complemented by a Pneumatic multi-function auto punching mechanism, trim cutting capabilities, auto rewinding, and a static eliminator. Operating temperature ranges from 0 to 300°C, with multiple counter functions available, such as quantity tracking, batch accumulation, and preset options. The machine can be operated based on length fixation or photocell tracking controls, while the punching device allows for customization of working rhythms and punching times.

Main Technical Variables:

	KDZD-A500	KDZD-A600
Max.Diameter of roll material	600mm	600mm
Max.Width of roll material	1050mm	1250mm
Max.Capacity	160 section/min（pieces/mm）	160 section/min（pieces/mm）
Max.Mechanical speed	40meter/min	40 meter/min
Total Power	40Kw	40Kw
Weight	4500kg	5500kg
Outline Dimension	9000x1900x1900mm	9000x2000x1900mm

If you only buy one machine,we will pack machine with wooden pack,and loading container withLess Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
