PVC Shrink Blown Film Extrusion
PVC Shrink Film Blowing Machine Produce PVC shrink film,to pack paper tissue,Battery,bottle,wire,books.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
PVC Shrink Blown Film Extrusion
The process of PVC Shrink Blown Film Extrusion utilizes advanced technology, including a rotary die head, frequency conversion speed control, and automatic constant temperature regulation. The resulting products demonstrate superior plasticization, meeting stringent requirements for film thickness uniformity, transparency, flatness, shrinkage, and other quality measures essential for printing thin films.
The plastic film blowing machine boasts a user-friendly and space-efficient design, incorporating key elements such as an extruder, rotary die head, cooling air ring, initial traction, hot water tank, calibrator, secondary traction with electric lift, double station coiler, extruder electric control cabinet, and auxiliary machine electric control cabinet.
The PVC Shrink Blown Film Extrusion machinery is specifically engineered to manufacture heat-shrinkable films from PVC plastic resin utilizing the blown film extrusion technique. These films are known for their exceptional clarity, shine, and significant shrinkage characteristics, rendering them a favored option for contemporary packaging requirements in sectors such as food, beverages, teas, glassware, handicrafts, sanitary products, cosmetics, and electronics.

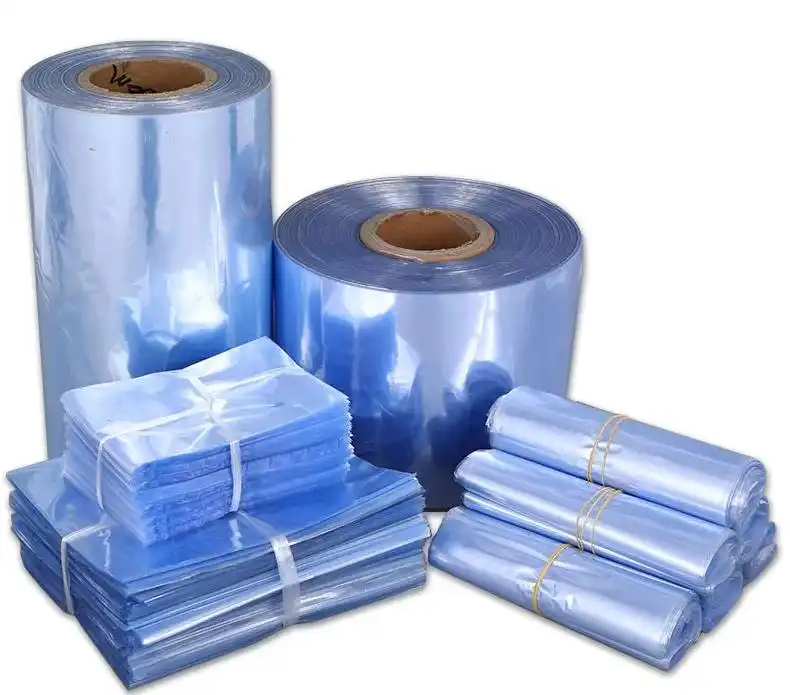

PVC hot shrink film
|
Item |
SJ-P600 |
SJ-P800 |
SJ-P1000 |
|
Film width |
300-600mm |
500-800mm |
700-1000mm |
|
Film thickness |
0.02-0.08mm |
0.02-0.09mm |
0.25-0.10mm |
|
Capacity |
40kg |
50kg |
60kg |
|
Lateral shrinkage |
45-50% |
45-50% |
45-50% |
|
longitudinal shrinkage |
5-25% |
5-25% |
5-25% |
|
Screw diameter |
60mm |
65mm |
70mm |
|
Screw ratio |
26:1 |
26:1 |
26:1 |
|
Motor |
15kw |
18.5kw |
22kw |
|
Heater |
10kw |
13kw |
16kw |
|
traction speed |
5-40m/min |
5-40m/min |
5-40m/min |
|
Machine weigth |
2200kg |
2500kg |
3000kg |
|
Power |
220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) |
||
|
Machine size(cm) |
550*200*320 |
600*220*360 |
650*250*400 |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
