Solventless Lamination Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Solventless Lamination Machine
The Solventless Lamination Machine is a reliable laminator that can laminate a variety of materials, including BOPP, OPP, NY, PVC, CPP, VMCPP, aluminum foil, and PET film. It is equipped with a five-roller coating system to improve its capabilities and precision. This machine features rigid shaft-less unwind and rewind units, closed-loop tension control using a dancer roller, and computer controls for all operations. With excellent pressure control for lamination, it produces high-quality finished products. Additionally, it comes with a one-year warranty and can run continuously 24/7. Its user-friendly design makes it ideal for beginners or those new to the industry, providing an economically viable option for all users.
Solventless Lamination Machine
Solventless Lamination Machine

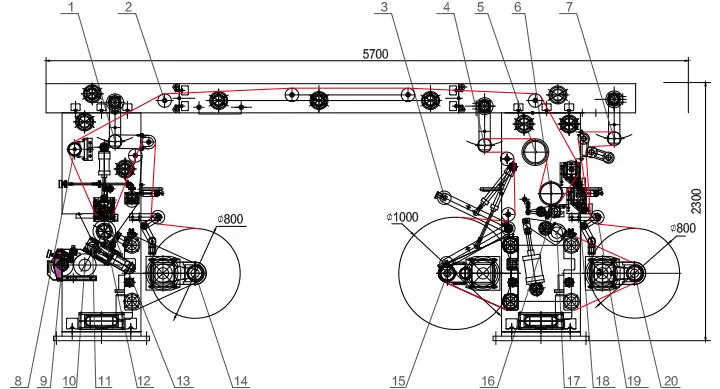

| 1. Tension Swimming Roller 2. Feeding Guide Roller 3. Rewinding Pressure Roller 4. Tension Swimming Roller 5. Cooling Roller 6. Laminating Roller 7. Tension Swimming Roller |
8. Tension Sense Roller 9. Doctor Blade Roller 10. Metering Roller 11. Gluing Roller 12. Coating Roller 13. Coating Pressure Roller 14. The First Unwinding |
15. The Rewinding 16.Laminating Pressure Roller 17. Laminating Back Pressure Roller 18. Adjustable Guide Roller 19. Moving Guide Roller 20. The Second Unwinding |
Technical Parameters:
| Item | BGFH-W |
| Max. Laminating Speed | 450 m/min |
| Max. Laminating Width | 1050/1250/1350mm |
| First Dia.of Unwinding | Max.Φ800mm |
| Second Dia.of Unwinding | Max.Φ800mm |
| Glue Spread | 1.0-3.0g/m |
| Laminated Film Type | BOPP, OPP, NY, PVC, CPP,Aluminum foil etc. |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
